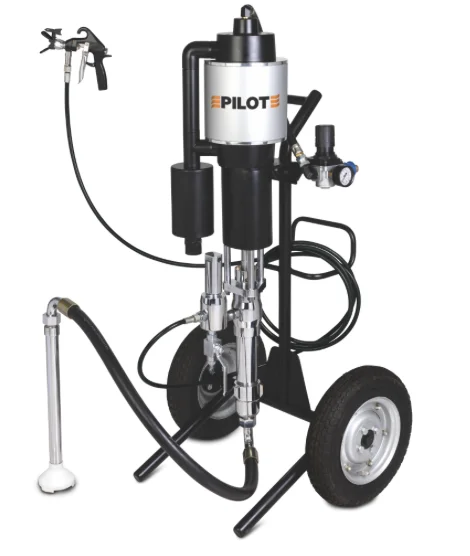

Maximize Efficiency with Pilot’s Pneumatic Airless Spray Systems

In industries where precision and efficiency are critical, having the right tools can significantly impact the quality and speed of work. Pilot’s Pneumatic Airless Spray Systems are designed to meet the high demands of industrial and commercial painting projects. These systems are equipped with advanced features that make them ideal for handling a wide range of coatings, including high solids, 100% solids, and solvent-free coatings.

Revolutionary Pneumatic Airless Technology

Pilot’s Pneumatic Airless Spray Systems are engineered with cutting-edge technology to ensure smooth, efficient, and reliable operation, even under the most demanding conditions. At the heart of these systems is the SUPER BREATH AIR MOTOR TECHNOLOGY, which delivers exceptional performance with minimal pulsation, ensuring a consistent and high-quality finish.

Key Features:

• Enhanced Capacity: Featuring an intake/exhaust air valve that offers around 4X higher capacity, these systems are capable of handling large volumes with ease.
• Large Flow Path: The fluid section is designed with a large flow path to accommodate high solids and solvent-free coatings, making it versatile for various applications.
• Ergonomically Designed Spray Gun: Lightweight and easy to handle, the spray gun features a stainless steel pressure chamber and wetted parts, ensuring durability and ease of maintenance.
• LESS PULSATION: The system ensures smooth, rapid, and sharp changeover even at high flow rates, delivering a consistent finish every time.
• STALL FREE OPERATION: Thanks to the EXPONENTIAL AIR DRIVE SYSTEM, these spray systems offer uninterrupted performance without the typical issues of stalling.
• ICING FREEDOM: The system is designed to be immune to icing, ensuring uninterrupted performance in all conditions.

Technical Specifications

Pilot’s Pneumatic Airless Spray Systems come in various models, each tailored to specific needs:

• Models:
  • PILOT PP 38 | PILOT PP 48 | PILOT PP 63 | PILOT PP 68 | PILOT PP 79
• Pump Ratios:
  • 38:1 | 48:1 | 63:1 | 68:1 | 79:1
• Maximum Working Pressure: Ranges from 266 bar to 553 bar.
• Maximum Air Input Pressure: Up to 7.5 bar.
• Output Flow Rate: Ranges from 7.2 Lpm to 11.4 Lpm.
• Air Consumption: Varies between 1.75 CFM and 3.25 CFM per liter of output spray volume.

Areas of Application

Pilot’s Pneumatic Airless Spray Systems are designed for versatility, making them suitable for a wide range of industrial applications:

1. Industrial Painting: Ideal for large-scale industrial projects where high-volume, consistent application is required.
2. Ship Painting: These systems are perfect for applying protective coatings to ships, ensuring durability and resistance to harsh marine environments.
3. Railway and Marine Coating: Provides precise application of protective coatings for railway and marine structures, ensuring long-lasting protection against the elements.
4. Pipe and Other Protective Coating: Capable of handling thick, high-solids coatings, making it ideal for pipes and other structures requiring robust protection.
5. PEB & Industrial Structural Fabrication: Delivers consistent coverage for pre-engineered buildings and other industrial structures, enhancing their durability and appearance.

Why Choose Pilot’s Pneumatic Airless Spray Systems?

For professionals in the industrial painting sector, efficiency and reliability are paramount. Pilot’s Pneumatic Airless Spray Systems are designed to deliver both, with advanced features that reduce downtime, improve the quality of application, and extend the life of the equipment. Whether you’re dealing with large-scale industrial projects or intricate structural coatings, these systems provide the power and precision needed to achieve outstanding results.

Conclusion

Pilot’s Pneumatic Airless Spray Systems represent the pinnacle of innovation and reliability in industrial painting technology. With their advanced features and robust design, these systems are built to handle the toughest jobs with ease, ensuring that every project is completed to the highest standard. Explore Pilot’s range of Pneumatic Airless Spray Systems today and discover how they can enhance your productivity and the quality of your work.
